Additional information
| Power | 10W 20W 30W 40W 50W |
|---|---|
| Efficiency | 801m/w |
| Lumen output | 2800Im 21600Im 224001m 232001m 240001m |
| Led chips | CREE CXA series |
| CRI | >80 |
| Life span | 50, 000hrs at Ta=25deg, L70/B10 |
| Color Temperature | 1750K-6500K |
| Optic lens | Nano reflector |
| Driver | Philips XI-EP series (Meanwell/inventronic/Osram upon request ) |
| Input Voltage | 100-305 VAC (Depending on driver model) 47-63 Hz |
| Power factor | >95 |
| THD | <10 |
| Protection level | GLASSI |
| SPD | 10KV (optional 20KV or other) |
| Finish | powder coating |
| Housing color | RAL 7035, RAL7024 (others upon request ) |
| IP Rating | IP66 |
| IK Rating | IK10 |

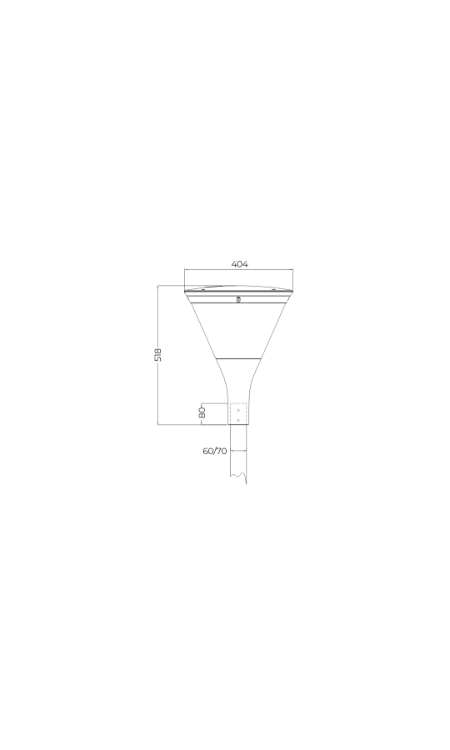

| Mounting | Vertical on Ø60 / Ø76mm pipe |
| Working Temperature | -30°C – + 65°C |
| Warranty | 5 years |
| Applications | BUILDING SURROUNDS, PARKS PROMENADES & PATHWAYS, PEDESTRIAN AREAS & CYCLE PATHS, URBAN & RESIDENTIAL STREETS |
