Additional information
| Power | 30W 50W 60W 70W 90W 100W |
|---|---|
| Efficiency | Chequered glass:>100lm/w Transparent Glass:>140lm/w |
| Lumen output | ≥3000lm ≥4200lm, ≥5000lm ≥7000lm, ≥6000lm ≥8400lm, ≥7000lm ≥9800lm, ≥9000lm ≥12600lm, ≥10000lm ≥14000lm |
| Led chips | Philips lumileds 3030 |
| CRI | >80 |
| Life span | 60, 000hrs at Ta=25deg, L70/B10 |
| Color Temperature | 2700K-6500K |
| Optic lens | PC Lenses |
| Driver | Philips Xi-LP series ( Meanwell/Inventronic/Osram upon request ) |
| Input Voltage | 100~305 VAC (Depending on driver model) 47~63 Hz |
| Power factor | >95 |
| THD | <10 |
| Protection level | GLASS I |
| SPD | 10KV (optional 20KV or other) |
| Finish | powder coating |
| Housing color | RAL 7035, RAL7024 (others upon request ) |
| IP Rating | IP66 |
| IK Rating | IK09 |

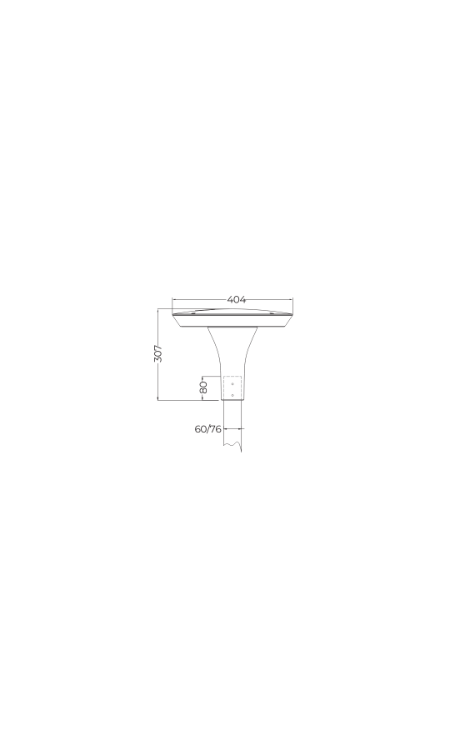

| Mounting | Vertical on Ø60 / Ø76mm pipe |
| Working Temperature | -30°C – + 65°C |
| Warranty | 5 years |
| Applications | BUILDING SURROUNDS, PARKS PROMENADES & PATHWAYS, PEDESTRIAN AREAS & CYCLE PATHS, URBAN & RESIDENTIAL STREETS |
